Large Fragment Locking Plate System

Indications :
Internal fixation, osteotomy and orthopedic surgery for lower extremity diaphyseal or metaphyseal fractures.

Features:
1. Anatomical design, conforming to the anatomical curvature of the bone
2. Low notch design to reduce irritation of soft tissue
3. The distal end is convenient for minimally invasive insertion and can be temporarily fixed with Kirschner wire
4. Long slotted hole, convenient for bone plate position adjustment and bone block compression
5. Can be used with 5.0mm locking screw, 4.5mm cortical bone screw and 6.5mm cancellous bone screw
Inquiry
Large Fragment Locking Plate System
products

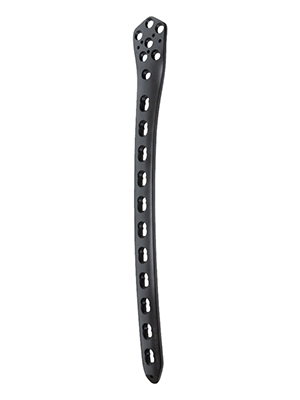

  • Distal Lateral Femur Plate II


    P/NSpecification
    127705015 holes,Left
    127707017 holes,Left
    127709019 holes,Left
    1277110111 holes,Left
    1277130113 holes,Left
    1277150115 holes,Left
    1277170117 holes,Left
    127705025 holes,Right
    127707027 holes,Right
    127709029 holes,Right
    1277110211 holes,Right
    1277130213 holes,Right
    1277150215 holes,Right
    1277170217 holes,Right




  • Proximal Lateral Tibia Plate II

    P/NSpecification
    128502012 holes,Left
    128503013 holes,Left
    128504014 holes,Left
    128505015 holes,Left
    128506016 holes,Left
    128507017 holes,Left
    128508018 holes,Left
    128509019 holes,Left
    1285100110 holes,Left
    1285110111 holes,Left
    1285120112 holes,Left
    1285130113 holes,Left
    1285140114 holes,Left
    128502022 holes,Right
    128503023 holes,Right
    128504024 holes,Right
    128505025 holes,Right
    128506026 holes,Right
    128507027 holes,Right
    128508028 holes,Right
    128509029 holes,Right
    1285100210 holes,Right
    1285110211 holes,Right
    1285120212 holes,Right
    1285130213 holes,Right
    1285140214 holes,Right



  • T Bone Plate I

    P/NSpecification
    12970400Straight,4 holes
    12970500Straight,5 holes
    12970600Straight,6 holes



  • L Bone Plate

    P/NSpecification
    129603013 holes,Left
    129604014 holes,Left
    129605015 holes,Left
    129606016 holes,Left
    129607017 holes,Left
    129603023 holes,Right
    129604024 holes,Right
    129605025 holes,Right
    129606026 holes,Right
    129607027 holes,Right



Instruments
Number Name Spec.
X-Ray / CT / MRI
  • 1 s2.0 S1877056818302299 gr8
  • Big fragement locking x
