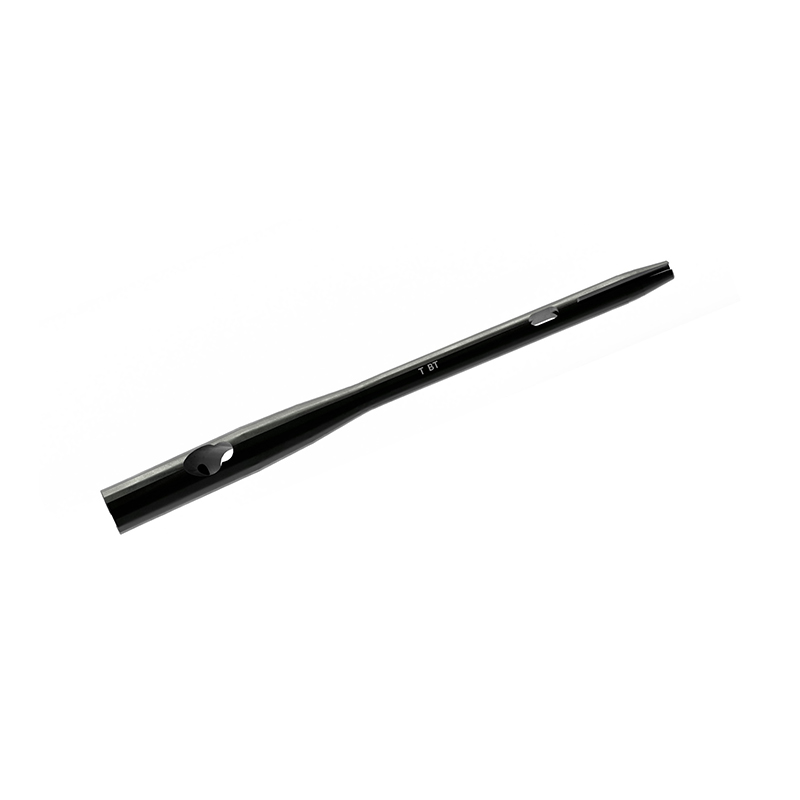

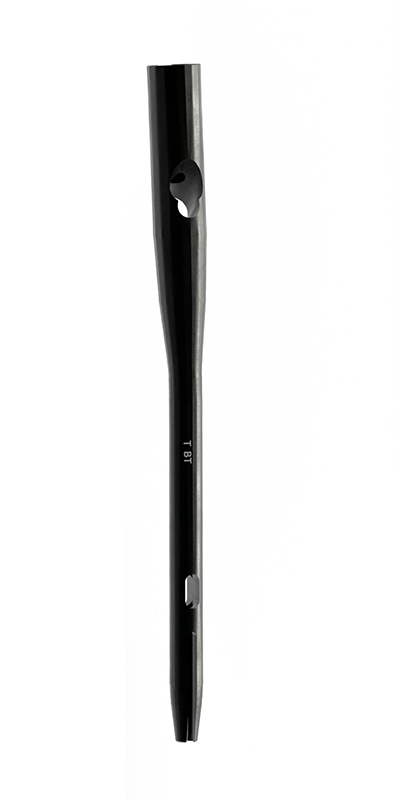

Gamma III y Intramedullary Nail

1. The special double screw interlocking design improves the ability to resist rotation and cut out of the femoral head
2. The linear tension function achieves effective pressurization without rotating motion at the same time
3. 5° external declination design for minimally invasive placement from the apex of the greater trochanter
4. The proximal diameter of the intramedullary nail is 16mm, and the lateral wall of the greater trochanter and the gluteus medius tendon are more preserved.
5. The design of the tuning fork at the distal end of the intramedullary nail reduces the stress concentration of the femoral stem
6. Shallow and sparse HA5 distal locking screw thread design increases the bending strength of the screw and facilitates insertion
Inquiry
Gamma III y Intramedullary Nail
products
  • Standard Gamma Nail III 130°


    P/NDiameter/mmLength/mm
    18310918Φ9180
    18310920Φ9200
    18311018Φ10180
    18311020Φ10200
    18311118Φ11180
    18311120Φ11200
    18312218Φ11.5180
    18312220Φ11.5200
    18311218Φ12180
    18311220Φ12200




  • Long Gamma Nail III(Left)121°


    P/NDiameter/mmLength/mm
    18930934Φ9340
    18930936Φ9360
    18930938Φ9380
    18930940Φ9400
    18930942Φ9420
    18931034Φ10340
    18931036Φ10360
    18931038Φ10380
    18931040Φ10400
    18931042Φ10420
    18931134Φ11340
    18931136Φ11360
    18931138Φ11380
    18931140Φ11400
    18931142Φ11420
    18931234Φ12340
    18931236Φ12360
    18931238Φ12380
    18931240Φ12400
    18931242Φ12420



  • Long Gamma Nail III(Right)121°


    P/NDiameter/mmLength/mm
    18940934Φ9340
    18940936Φ9360
    18940938Φ9380
    18940940Φ9400
    18940942Φ9420
    18941034Φ10340
    18941036Φ10360
    18941038Φ10380
    18941040Φ10400
    18941042Φ10420
    18941134Φ11340
    18941136Φ11360
    18941138Φ11380
    18941140Φ11400
    18941142Φ11420
    18941234Φ12340
    18941236Φ12360
    18941238Φ12380
    18941240Φ12400
    18941242Φ12420



  • Interlocking Screw(HA5.0)


    P/NLength/mm
    1833002020
    1833002525
    1833003030
    1833003535
    1833004040
    1833004545
    1833005050
    1833005555
    1833006060
    1833006565
    1833007070
    1833007575
    1833008080
    1833008585
    1833009090
    1833009595
    18330100100



  • Lag Screw III


    P/NLength/mm
    1832008080
    1832008585
    1832009090
    1832009595
    18320100100
    18320105105
    18320110110
    18320115115
    18320120120



Instruments
Number Name Spec.
1 测试 测试副标题
X-Ray / CT / MRI
  • Gamma 3 Y
