CoCrMo Series

Features:
CoCrMo material has higher strength than titanium alloy material under the same size and design;
Compared with the titanium alloy pedicle screw of the 5.5 system, the CoCrMo pedicle screw in the 4.75 system can reduce the volume by about 26%, reducing the notch of the implant;
The reverse thread design of the top wire reduces the lateral stress, increases the vertical pressure, and is easy to lock;
CBT screws: maximum contact with cortical bone increases screw holding power




Indications:
· Disc degeneration
· Spondylolisthesis
· Spinal stenosis
· Spinal fractures
·Spine tumor
· Spinal deformities
Inquiry
CoCrMo Series
products

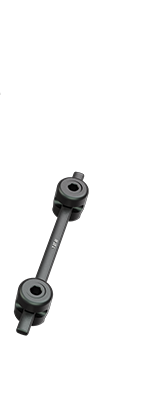

  • Adjustable Crosslink


    P/NSpecification/mm
    31162040L=40
    31162045L=45
    31162050L=50
    31162055L=55
    31162060L=60
    31162065L=65
    31162070L=70
    31162075L=75
    31162080L=80
    31162085L=85
    31162090L=90
    31162095L=95
    31162100L=100

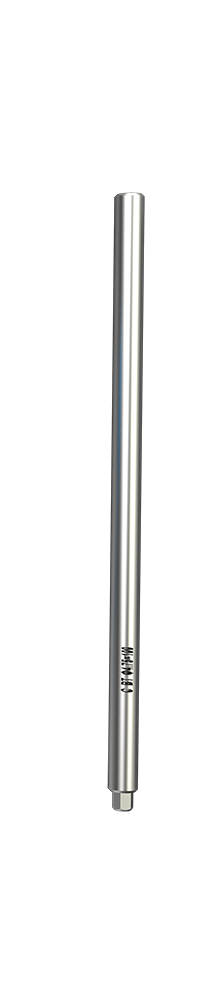

  • Rod


    P/NSpecification/mm
    31140030Φ5.5×30
    31140035Φ5.5×35
    31140040Φ5.5×40
    31140045Φ5.5×45
    31140050Φ5.5×50
    31140055Φ5.5×55
    31140060Φ5.5×60
    31140070Φ5.5×70
    31140080Φ5.5×80
    31140090Φ5.5×90
    31140100Φ5.5×100
    31140110Φ5.5×110
    31140120Φ5.5×120
    31140250Φ5.5×250
    31140510Φ5.5×510

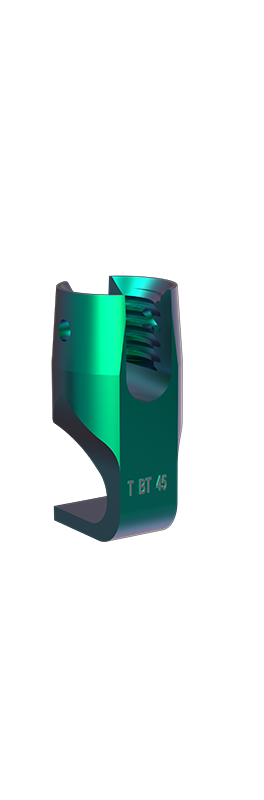

  • Pedicle Hook


    P/NSpecification
    31140001L
    31140002M
    31140003S

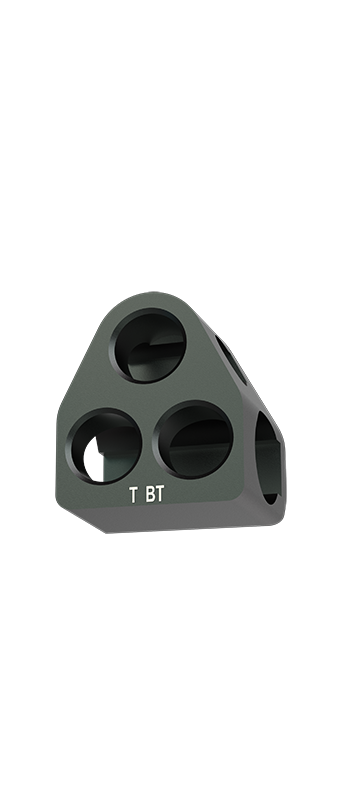

  • Domino Connector


    P/NSpecification
    31140023Straight

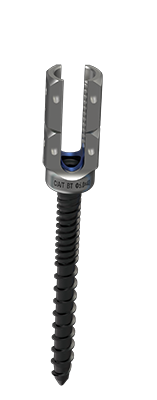

  • Pedicle Screw(Reduction polyaxial)


    P/NSpecification/mm
    31124525Φ4.5×25
    31124530Φ4.5×30
    31124535Φ4.5×35
    31124540Φ4.5×40
    31124545Φ4.5×45
    31125030Φ5.0×30
    31125035Φ5.0×35
    31125040Φ5.0×40
    31125045Φ5.0×45
    31125050Φ5.0×50
    31125055Φ5.0×55
    31125530Φ5.5×30
    31125535Φ5.5×35
    31125540Φ5.5×40
    31125545Φ5.5×45
    31125550Φ5.5×50
    31125555Φ5.5×55
    31126030Φ6.0×30
    31126035Φ6.0×35
    31126040Φ6.0×40
    31126045Φ6.0×45
    31126050Φ6.0×50
    31126055Φ6.0×55
    31126060Φ6.0×60
    31126530Φ6.5×30
    31126535Φ6.5×35
    31126540Φ6.5×40
    31126545Φ6.5×45
    31126550Φ6.5×50
    31126555Φ6.5×55
    31126560Φ6.5×60
    31126565Φ6.5×65
    31127030Φ7.0×30
    31127035Φ7.0×35
    31127040Φ7.0×40
    31127045Φ7.0×45
    31127050Φ7.0×50
    31127055Φ7.0×55
    31127060Φ7.0×60
    31127530Φ7.5×30
    31127535Φ7.5×35
    31127540Φ7.5×40
    31127545Φ7.5×45
    31127550Φ7.5×50
    31127555Φ7.5×55
    31127560Φ7.5×60
